Size: 11900x2500 x1600mm
Function: Bulk Cargo and Heavy Duty Equipment
Max Payload: 40-80T
Material: Carbon Steeel
Suspension: Mechanical / Air / Bogie
CIMC side board semi-trailer is the widely used trailer for transport different kinds of goods, such as fruit,vegetables, grocery goods,coal, coil steel,etc. CIMC coal transport trailers are China most famous brand, biggest trailer manuafacturer and oldest trailer manufacturer with more than 60 years production history. With high quality, beautiful appreance and high level service.
To ensure optimal structure for cargo handling and larger payload, the fence trailer chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.

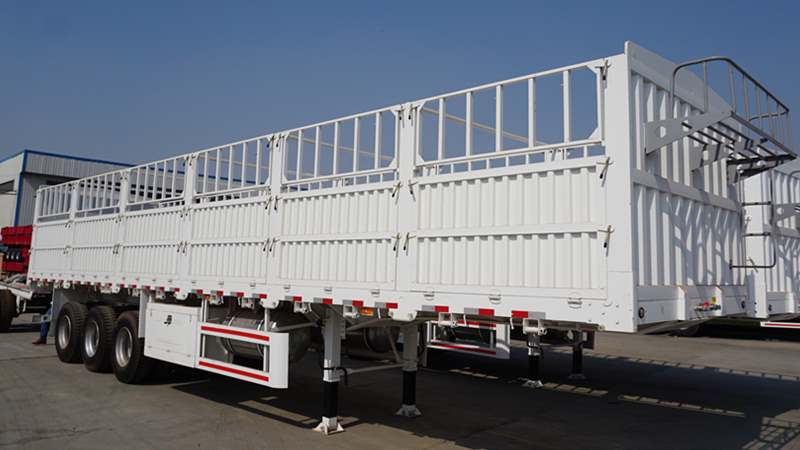

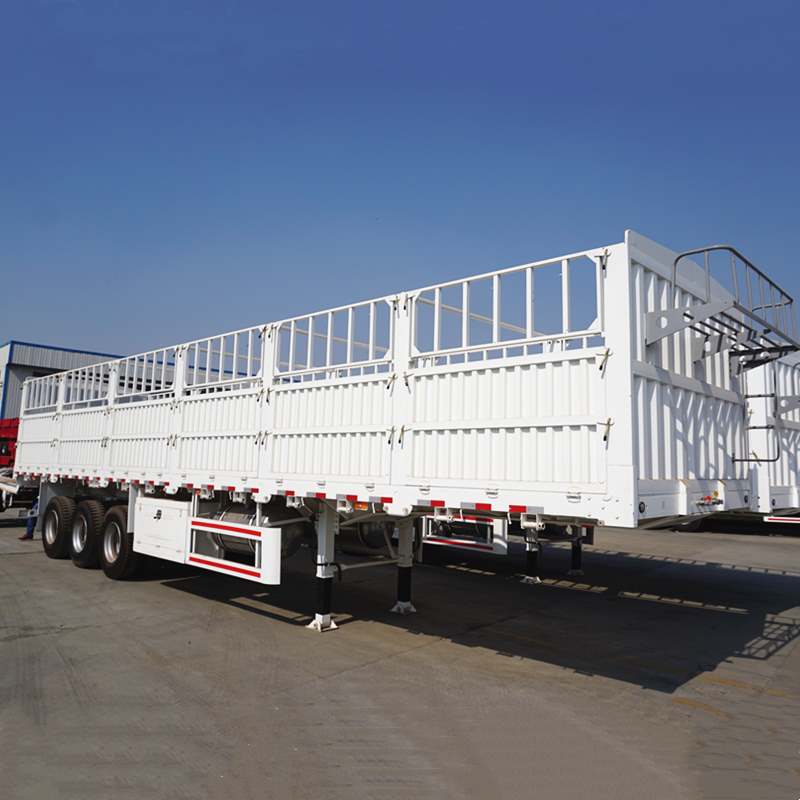

Tri Axle Stake Fence Semi Trailer-CIMC Manufacturer
Remark: This Specification just for your reference, we can produce fence semi trailer as your demands.
Dimension: 11900x2500 x1600mm
Side wall: 600mm, 800mm, 10000mm
Loading Capacity: 60 Ton
Tire: 12R22.5, 12units
Rim: 9.00-22.5, 12units
Axles: 3X13T BPW or FUWA brand
King Pin: 3.5 inch JOST Brand
Brake System: WABCO Valve and relays/ABS
Landing Gears: JOST Landing gear
Susension: Mechanical spring suspension
Electrical: 24 V
Light: LED light ( speically intended for Africa market)
Container lock: Optional
1.CIMC fence semi trailer strong loading capacity: By using high strength steel and structural innovation,it keeps same loading capacity while reducing tare weight.
2.Coal transport trailer integral vehicle has strong strength,small weight,rational structure and beautiful appearance. CIMC Fence Semi Trailer all parts use foreign and domestic famous brands,are purchased,inspected.
3.Reliable Dual Circuit Air Brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.
4.Hot-Rolled Structural Steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The side railed trailer finished chassis offers bending and deforming resistance with proper rigidity and strength.
